10Bar 1.4307 Industrial Union Sanitary Sight Glass

Name: 10Bar 14307 Industrial Union Sanitary Sight Glass
Brand: NYHAU
Price: 1 USD

Quality 10Bar 1.4307 Industrial Union Sanitary Sight Glass wholesale

Brand Name : NYHAU

Certification : 3A,CE,ISO,FDA

Place of Origin : KunShan,China

MOQ : 1PC

Price : Negotiable

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Month

Delivery Time : 5-8 work days

Packaging Details : Export Standard Packing(Shrink Wrapped, Reusable Bag, Paper Carton,Plywood)

Flow Medium Parts : 304,304L,316L (1.4301,1.4307,1.4404)

Glass : Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; Etc

Protection Lens Cover : Polycarbonate Tubing,Acrylic Tubing Or Slotted Stainless Steel

Screw Blot : Full Stainless Steel

Machine Processing : The Most Advanced CNC Machine From Japan For Processing

Special Design : We Can Produce According To Your Drawings

Contact Now

Sanitary Tank Vessel Union Sight Glass With Light , Tempered Glass Material

Product Description

The parts of this sanitary sight glass are assembled by union connection method, and is connected to a hygienic tank or vessel by butt weld, tri clamp or thread connection ways. It is widely used in hygienic industries to monitor medium status inside the sanitary tanks or vessels.

10Bar 1.4307 Industrial Union Sanitary Sight Glass

Product name:	Sanitary union sight glass with light
Material:	SS304,SS316L
Glass Material:	Tempered glass/ Toughened high-borosilicate glass
Seal Material:	EPDM,Silicone,PTFE
Connection:	Clamped,welded,threaded end
Size:	DN25-DN150, 1"-6" or as required
Standards:	DIN,3A,SMS,ISO,IDF
Power:	AC110V-220V,DC24V,Battery 220V
Max pressure:	10Bar
Working temp:	-10°C to +150°C
Surface finishing:	Internal surface:Ra ≤0.8μm External surface:Ra ≤1.6μm
Packaging:	Standard exportation package or packed on the basis of customers' requirements
Applications:	Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc

Glass Material Type

Type A: Anti-corrosion type

Type B: Explosion-proof type

Highlights of Union Connection End:
1. Very sientific connection design with high sealing function
2. High mechanical property to withstand strong force
3. Fast connection and disassembly, saving time
4. Exteremely convenient for daily repair and maintainance
Union Connection End Dimension Standards:
1. ISO 2853: ISS / IDF Hygienic stainless steel couplings for food applications
2. DIN 11851: Unions screwed pipe fittings for food chemical and pharmaceutical industry
3. DIN 11853-1: Hygienic pipe screw connections, short type
4. DIN 11864-1: Aseptic screwed pipe connection for welding type union
5. BS 4825 PART 4: IDF / ISS Hygienic stainless steel thread couplings for food applications

Specification:

a. Size	b. DN10-DN150 & 1/2""-6"
c. Type	d. Union Type Tank Vessel Sight Glass
e. Working Pressure	f. 1.0 MPa Max.
g. Medium Temperature	h. 0~200℃
i. Optional Accessories	j. LED light available
k. Standard	l. ISO, DIN, IDF, 3A, SMS etc.
m. Material	n. SUS304, SUS316L etc.
o. Certificate	p. CE, ISO9001/2008, 3A
q. Applications	r. Dairy, food, beer, beverage, pharmacy, cosmetic, etc.

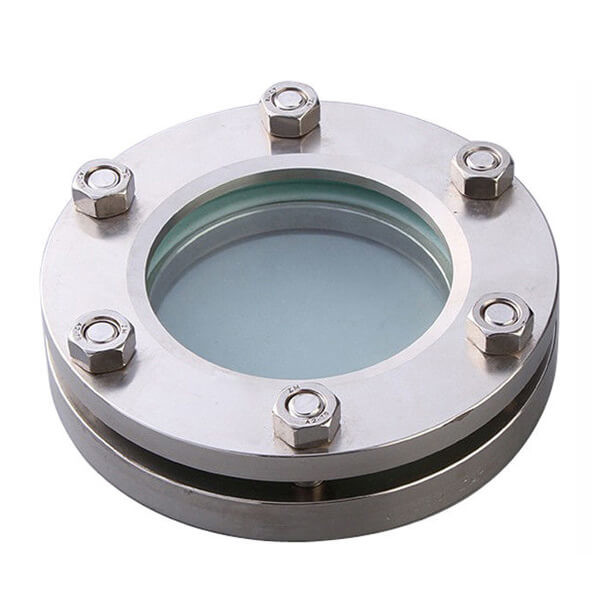

10Bar 1.4307 Industrial Union Sanitary Sight Glass Images
